Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stainless Flat Wire Mesh Belt , Honeycomb Conveyor Belt For Bread Baking | Keywords: | Falt Wire Mesh Belt |
|---|---|---|---|
| Main Features: | Large Open Area | Material: | 304 Stainless Steel |
| Application: | Bread Baking Oven | Package: | Plywood Box |
| Highlight: | flat wire conveyor belt,honeycomb belt |
||

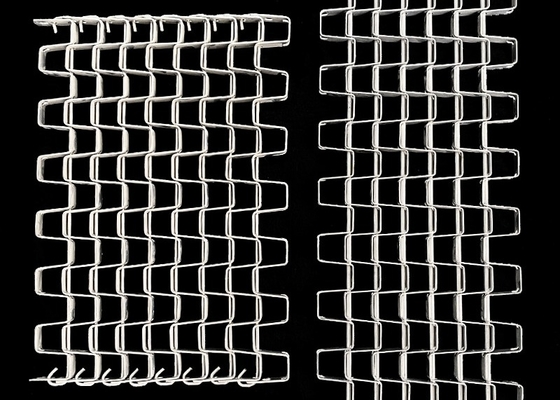

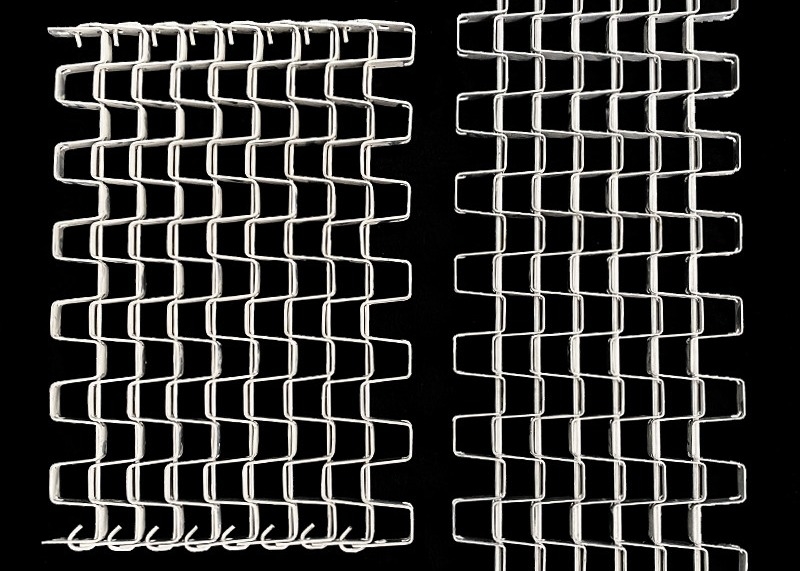

Stainless Flat Wire Mesh Belt , Honeycomb Conveyor Belt For Bread Baking
Description Of Flat Wire Mesh Belt
Flat wire mesh belt has many kinds of material , such as stainless steel wire , stainless iron wire , low carbon steel wire , galvanized iron wire . It has the fetures of large open area allows easy air flow on the tunnel freezer belt , long lifetime of the conveyor belt . It also can be used in many different areas : Product handling systems , Sorting systems , Washing systems , Bread production systems , Drying systems , Cooling systems , Food processing .
The description of flat wire mesh belts is followed by its load capacity . Normally , there are standard duty belts and heavy duty belts for our customer to choose from according to their different needs . The standard duty type is sufficient for most applications and heavy duty type is ideal for heavy product conveying and some tougher conditions .
As your request, radius flat wire mesh belt can also be supplied with right and left turn up to 180 degrees and reinforcing links to strengthen the outside edges of the belt . Its turning ability makes the belt capable to operate in limited space without obstacles and troublesome transfers .
Data Sheet Of Flat Wire Mesh Belt
| Item | Size(mm) | Sheet thickness(mm) | sheet width(mm) | Material |
| Flat wire conveyor belt | 25.4*12.7 | 1.2 | 9.5 | carbon steel |
| 25.4*25.4 | 1.2 | 9.5 | stainless steel | |
| 27.2*18 | 1.5 | 12 | galvanized steel | |
| 27.2*27.2 | 1.5 | 12 | ||
| 38.1*38.1 | 1.5-2.0 | 12 | ||
| 38.1*19 | 1.5-2.0 | 12 | ||
| 50.8*25.4 | 2.0-2.5 | 15 | ||
| 50.8*50.8 | 2.0-2.5 | 15 |
Features Of Flat Wire Mesh Belt
Easy flow of air , liquids or gases , Flat surface , easy to clean , easy to replace the damaged parts which are damaged , made from cross rods and flat metal strip , Can be used at conveyor speeds of less than 1 meter per minute to about 25 meters per minute , Large open area
Application Of Flat Wire Mesh Belt
Food baking , cooling and freezing , etc.
Chemical industry .
Agricultural farming and harvesting .
Being used in discharging tower at ports .
Sorting , sieving and waste handling system
Washing , drying , painting and transferrin
Acting as matting and drag mats
Package Of Flat Wire Mesh Belt
Usage Of Flat Wire Mesh Belt
Foreign Customers Visit The Factory
